AIRTEC Intercooler Upgrade for Escort RS Turbo S1
Single pass 50mm core front mount intercooler upgrade
Grill and spot lights can still be fitted
AIRTEC part no: ATINTFO4
Technical Data

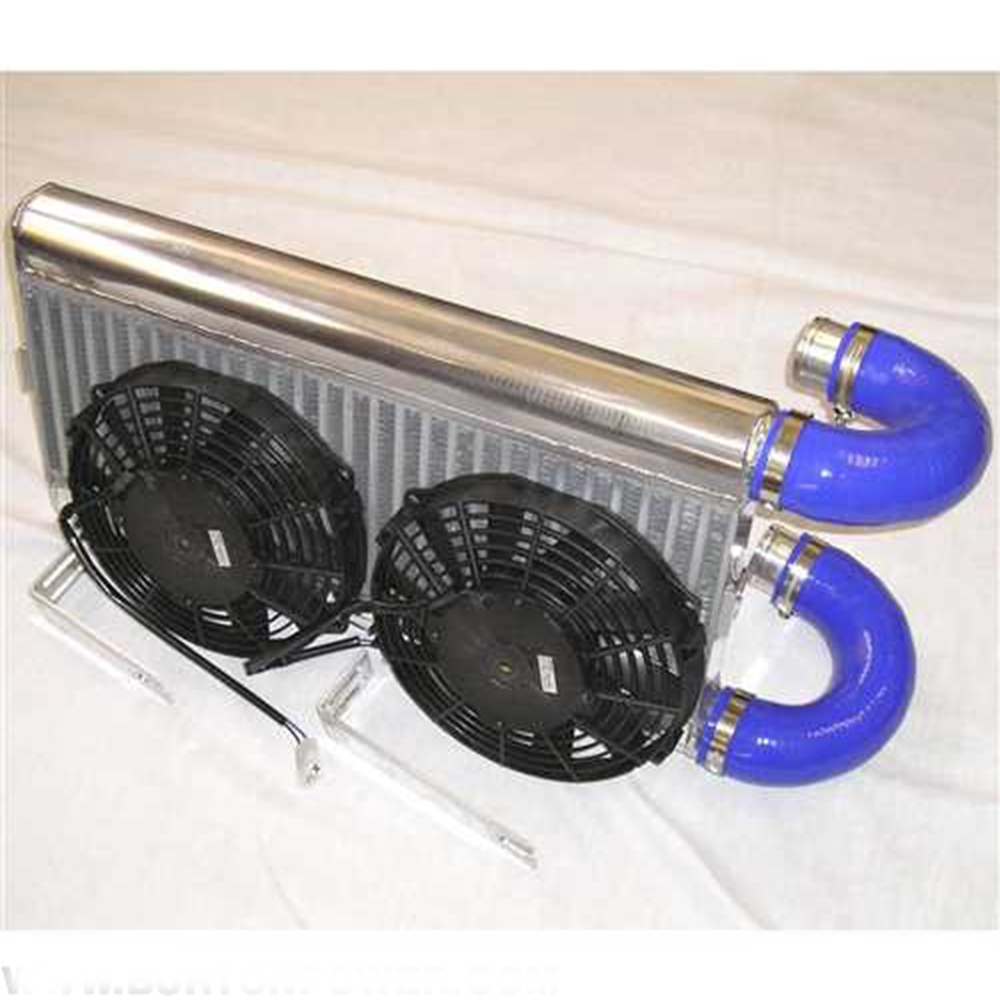

AIRTEC front mount intercooler upgrade for the Escort RS Turbo S1
Features:
- Single pass 50mm thick AIRTEC spec core
- Polished finish

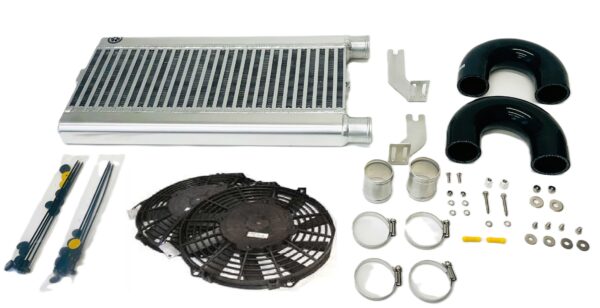

- Complete with twin fans and fitting kit
- Can still fit grill and spot lights No drilling required, comes with adjustable side brackets which bolt onto the side of the intercooler then bolt onto back of front bumper using existing studs on bumper
- Fitting can take approximately 3-4 hours, only very minor cutting required.
What is a Single Pass Intercooler?
The main visual difference is that the core runs top to bottom instead of left to right like a twin pass intercooler, This means that the core is vertical which allows the cooling core to be lined up side by side
When tested against the old twin pass intercooler, the flow rate was over double which means a colder denser air meaning more power
Aprroximate Dimensions:
Core thickness 50mm
Height 294mm
Width 610mm
AIRTEC part number: ATINTFO4
