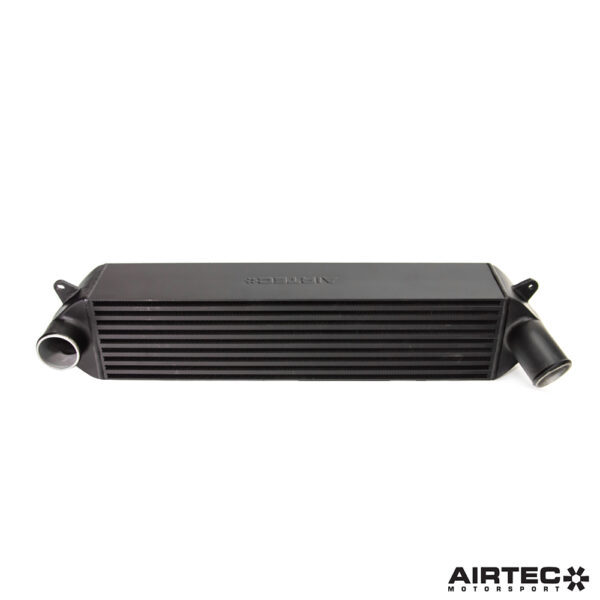

AIRTEC Motorsport Front Mount Intercooler for Hyundai Kona N
The original intercooler is wide but shallow and does not make full use of the available space above and below it. So we concentrated on creating a core that was deeper, higher as well as wider.
The result is a core that’s 33% deeper than the original, offering a massive 58% increase in overall capacity in comparison to the OEM intercooler and there’s also a significant increase in frontal area, which allows it to make the most of the air flow provided.
AIRTEC part no: ATINTHYU5
Technical Data
As part of our expanding Hyundai product range, AIRTEC Motorsport is proud to launch our Kona N intercooler upgrade suitable for track or fast road use.
In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.
The original intercooler is wide but shallow and does not make full use of the available space above and below it. So we concentrated on creating a core that was deeper and higher as well as wider.
The result is a core that’s 33% deeper than the original, offering a massive 58% increase in overall capacity in comparison to the OEM intercooler and there’s also a significant increase in frontal area, which allows it to make the most of the air flow provided.
It also offers 30% larger inlet and outlets, increasing to 63mm and 65mm from the standard 50mm found on the original intercooler to reduce restriction. The kit is supplied with Pro Hoses silicone pipework, which joins to the OEM boost pipes.

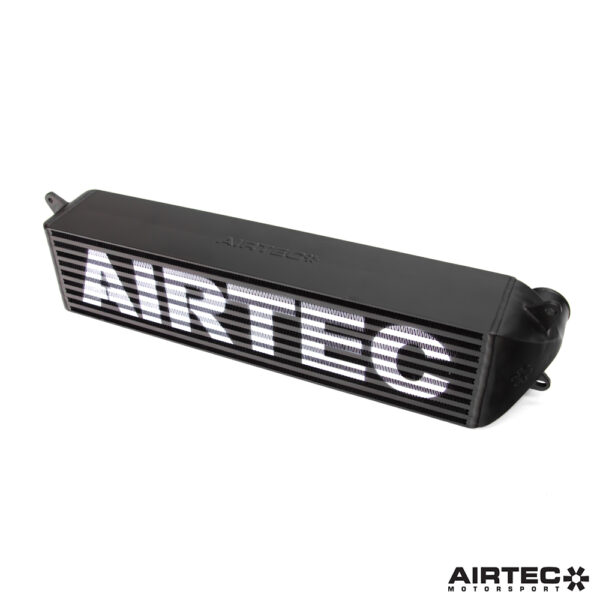

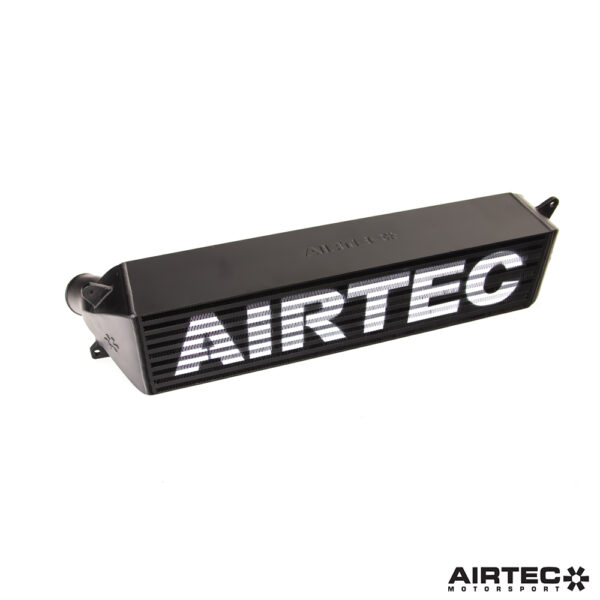

Together with our high-flow, moulded one-piece cast end tanks to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater cooling efficiency and volume over standard.

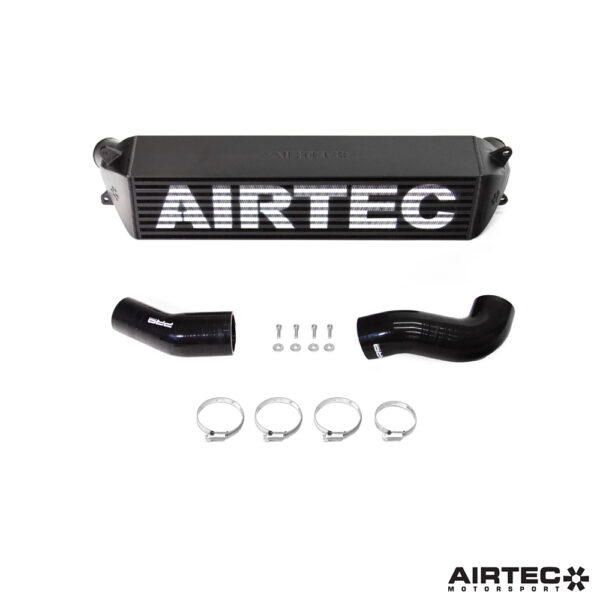

The comprehensive fitting kit includes all fixtures and fittings, as well as detailed installation instructions.

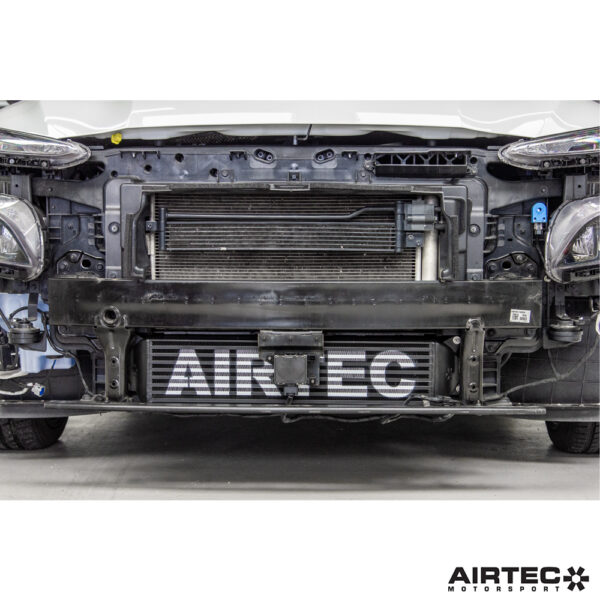

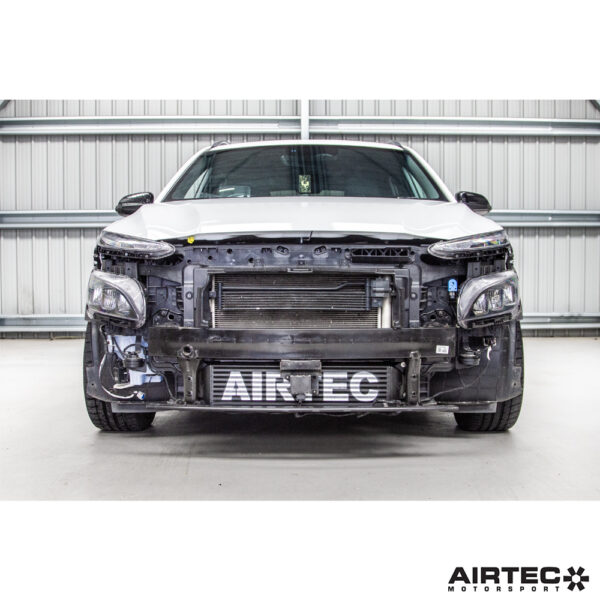

Please note: A small amount of trimming is required to fit this intercooler, please refer to the fitting instructions for further information: Fitting Instructions – AIRTEC Motorsport
Dimensions:
Original intercooler
Width: 610mm
Height: 130mm
Depth: 90mm
Capacity: 7.14 litres
Front area: 793cm²
Inlet: 50mm
Outlet: 50mm
AIRTEC Motorsport intercooler
Width: 625mm
Height: 150mm
Depth: 120mm
Capacity: 11.25 litres
Front area: 938cm²
Inlet: 63mm
Outlet: 65mm
Features:
- 58% increase in capacity compared to original intercooler
- Increase in frontal area compared to original intercooler
- Huge increase in cooling ability
- Reduced charge temperatures
- Up to 30% larger inlet and outlets
- High-flow, moulded one-piece cast end tanks
- Powder-coated black finish
- Pro Hoses silicone pipework
- Includes all fittings and fixtures
- Features detailed fitting guide
Registered Design Right number: Application Pending
AIRTEC part no: ATINTHYU5
