AIRTEC Intercooler Upgrade for Mini Cooper S F56

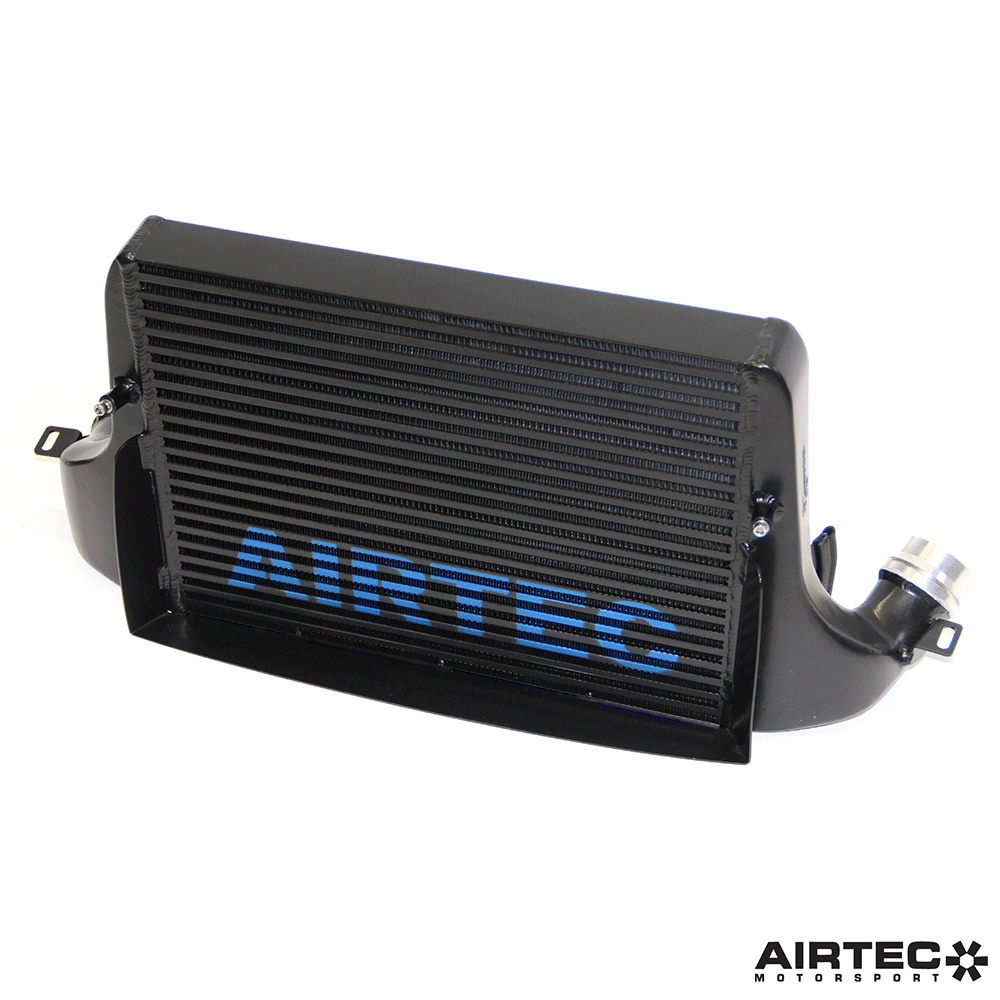

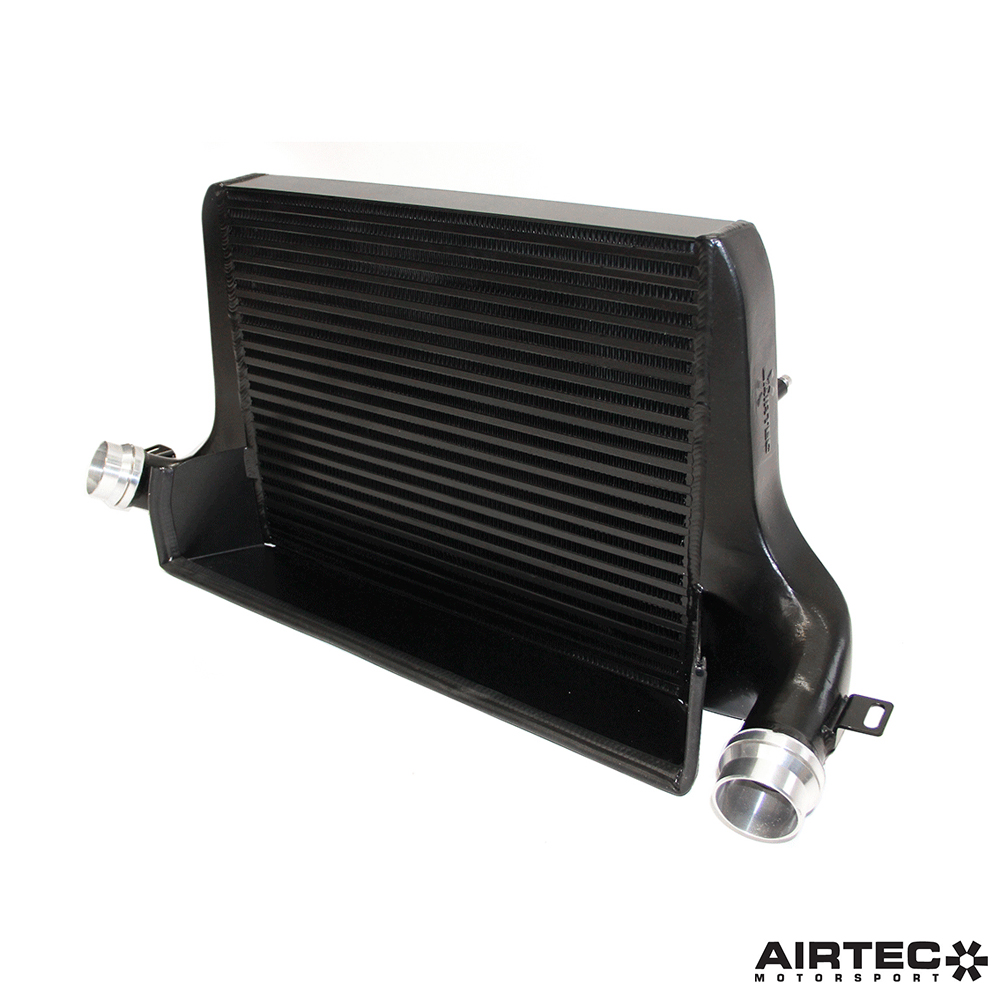

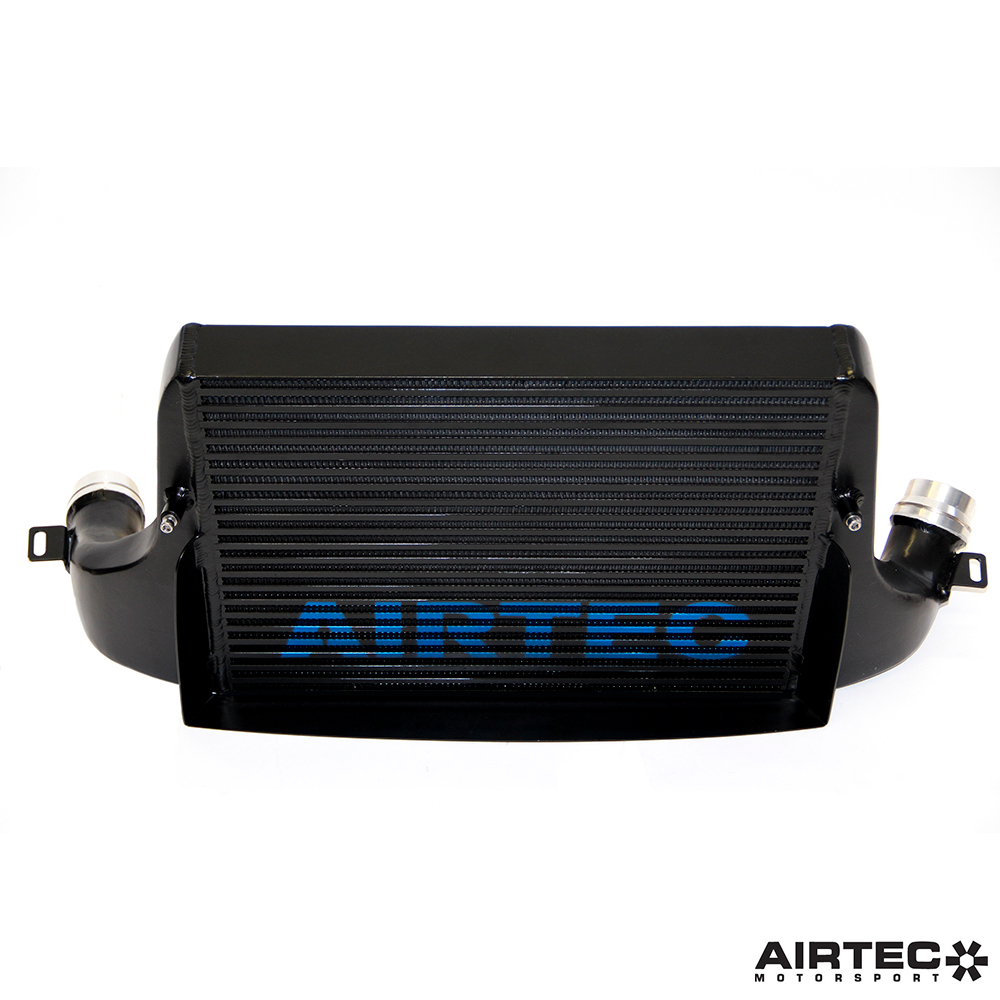

Available in pro-series black for the ultimate stealth look – Silver for photo purposes only.
Please note: This intercooler will not fit the JCW.
AIRTEC part no: ATINTMINI05
Technical Data
Bolt on BHP, by lowering the charge air temperatures, a remapped car has increased power by ECU changes that raise boost pressure and other parameters, this increase in boost pressure raise intake temps and power loss soon follows, by fitting an up-rated intercooler you lower these intake temps, in turn increasing bhp and making your engine safer
Dyno testing – tests were carried out for temperature before and after the intercooler.
Please note: This intercooler was developed on a pre-facelift/pre-LCI car. Later cars have a larger radiator that makes fitting harder.
TESTED
Original Intercooler:
Run 1 – In: 137 degrees C – Out: 50 degrees C
Run 1 – In: 139 degrees C – Out: 54 degrees C
Run 1 – In: 141 degrees C – Out: 61 degrees C
AIRTEC Intercooler:
Run 1 – In: 138 degrees C – Out: 26 degrees C
Run 1 – In: 140 degrees C – Out: 27 degrees C
Run 1 – In: 141 degrees C – Out: 27 degrees C
Dimensions:
Width: 800mm
Height: 210mm
Depth: 60mm
Capacity: 10.1 litres
Features:
- Race spec bar ‘n’ plate core 60mm thick for super-fast recovery times
- Dyno proven to reduce intake temperatures
- Super flow end tanks – thin wall cast alloy end tanks with no sharp corners that can slow air speed
- Bolt on design with no extra modding required
- AIRTEC’s 3-year unlimited mileage warranty
- CNC alloy pipe connections
Available in Pro-Series black for the ultimate stealth look – Silver for photo purposes only.
Please note: This intercooler will not fit the JCW.
Registered Design Right number: 6023250
AIRTEC part number: ATINTMINI05
