AIRTEC Stage 2 Intercooler Upgrade for Citroen DS3

Technical Data

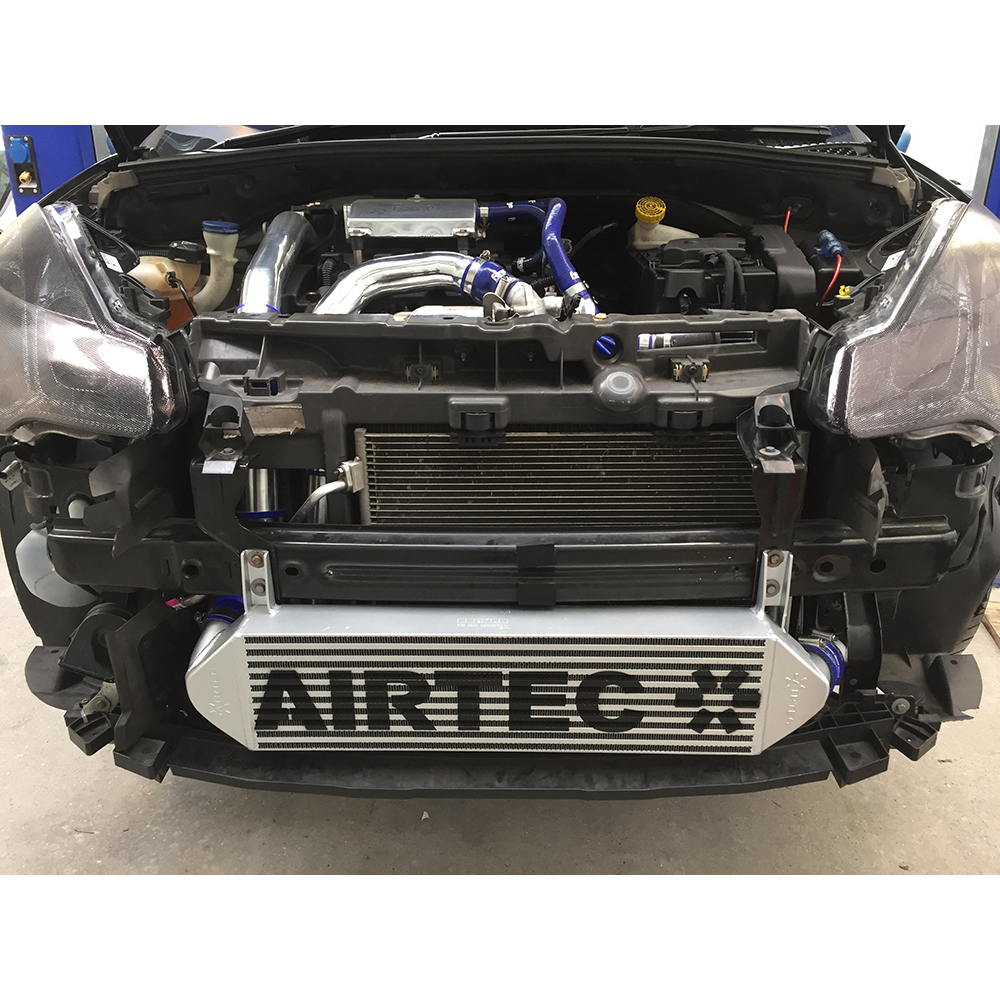

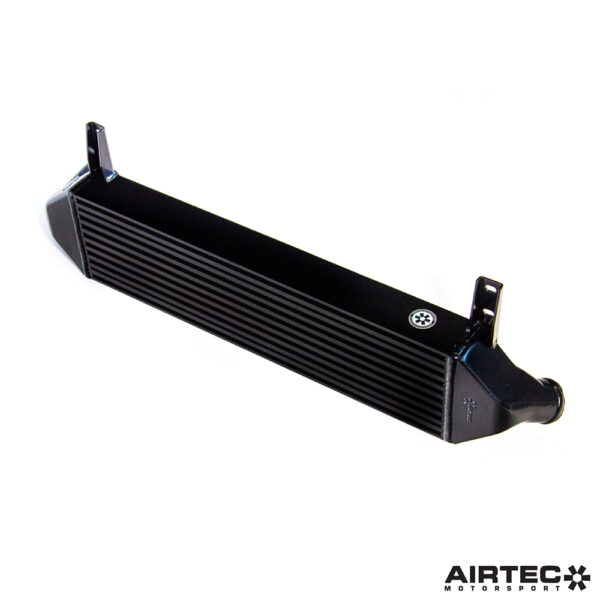

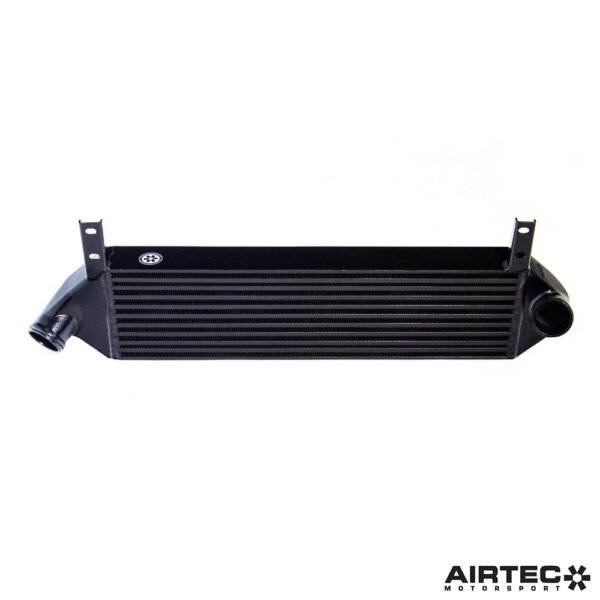

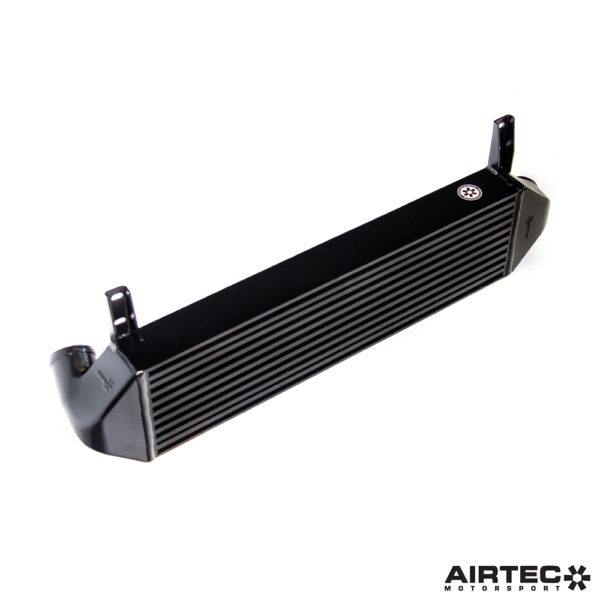

AIRTEC front mount intercooler for the Citreon DS3.

Great addition to any standard or remapped DS3

Features

• 60mm thick track proven bar and plate core, spec’d to AIRTEC design
• Airtec Cast end tanks for improved Airflow and unbeatable strength

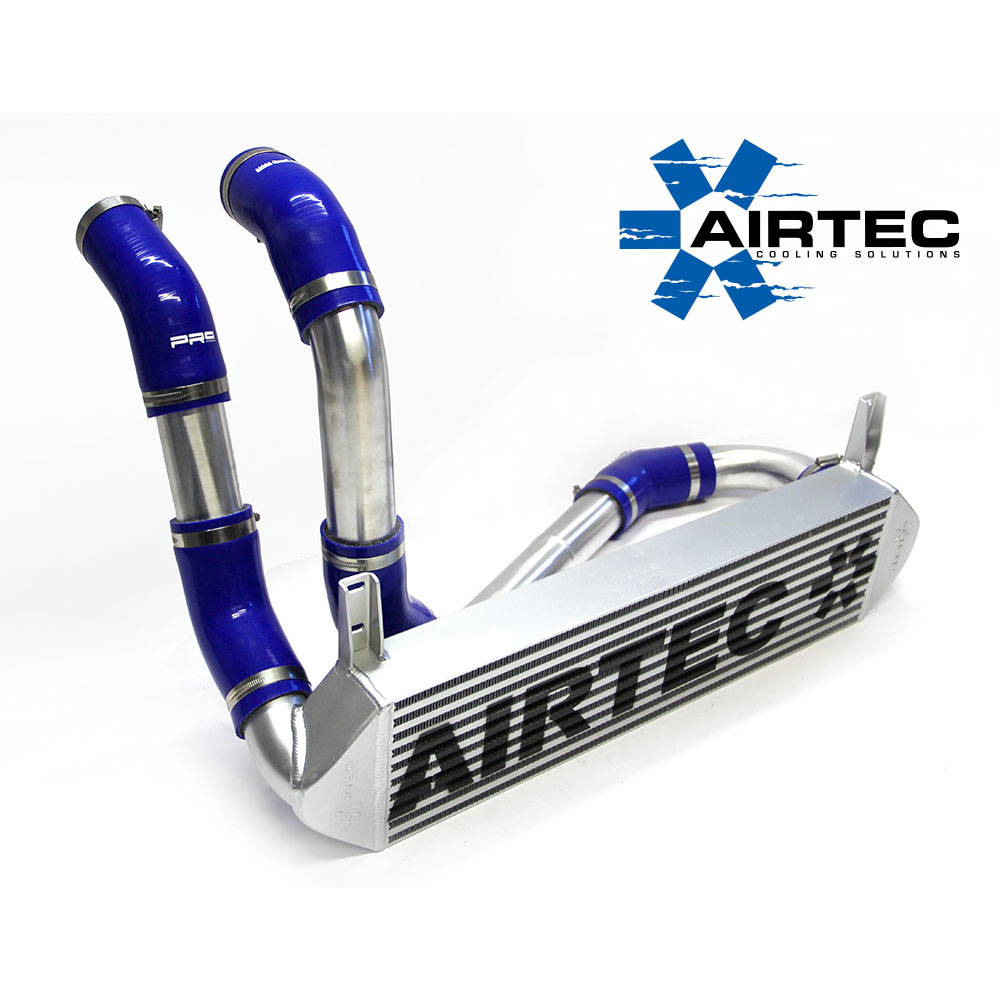

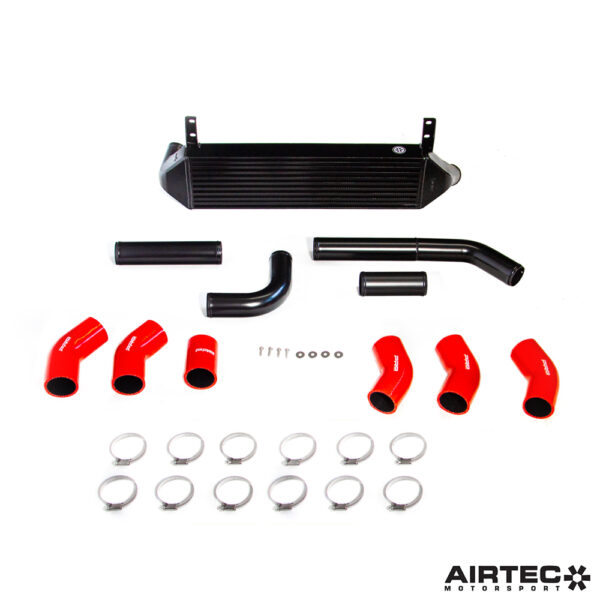

• Comes with silicone and alloy boost pipe connecting hoses – includes stainless clips
• Fitting takes approximately 2-3 hours, comes with fitting instructions
• 3 year unlimited mileage warranty
• Available in Pro-Series Black or Natural Silver
• AIRTEC Logo available at no extra charge
• Optional boost pipe kit available to enhance under bonnet looks and improve flow

Rolling road tested at AmD Essex.

Standard intercooler:
Dyno cell ambient temperature: 19 degrees.

Run 1

In – 166 degrees
Out – 99 degrees

Run 2

In – 191 degrees
Out – 109 degrees

AIRTEC Stage 1 twin pass intercooler:
Dyno cell ambient temperature: 19 degrees.

Run 1

In – 144 degrees
Out – 37 degrees

Run 2

In – 165 degrees
Out 42 degrees

Run 3

In – 170 degrees
Out – 46 degrees

With the AIRTEC stage 1 twin pass intercooler fitted the charge temps were dropped down from around 100 degrees down to 42 degrees resulting in more power and a safer engine.

Test car fitted with Miltek cat back exhaust + sports cat, Forge intake system, stage 2 remap.

Huge surface area whilst still allowing plenty of airflow to the top section of the radiator, essential for hotter climate countries.

Approximate dimensions:

60mm – Thickness

175mm – Height

760mm – Width
