Revo Carbon Series | MQB Air Intake System

Beautifully crafted from the highest quality 3K carbon, the Revo Carbon Series is much more than a visual enhancement. Designed to directly replace restrictive OEM components, the Carbon Series has performance woven in to the core of every product.

Intake system available to suit both stock IS20/IS38 turbo or Hybrid IS38ETR turbo upgrade – choose from options below.

Part no: RHW46

From £842.94 (inc VAT)
£702.45 (exc VAT)
Clear

Technical Data


Revo Carbon Series – Air Intake System
The Revo Carbon Series Air Intake System for the 2.0 & 1.8TSI offers unparalleled performance benefits along with a striking visual addition to your engine bay. The full kit, which comes complete with a matching Carbon Series front scoop, lid, back-pipe and Pro-Panel filter completely replaces any restrictive elements of the OEM intake system, decreasing turbulence and allowing a larger volume of air to reach the turbo more quickly

Key Features

Increased Performance
Improves Air Flow Efficiency
Carbon Series Quality
Replaces Restrictive Stock Turbo Elbow
Engineered for both LHD and RHD Fitment
16% Larger Air Box Outlet



Turbo Inlet Hose

The Revo Turbo Inlet Hose is a high-quality single piece replacement for the restrictive OEM parts and promote smoother uninterrupted air flow, improving throttle response and the performance of your vehicle.

Increased Diameter for Carbon Lid
Turbo Matched Inlets
Constant Taper for Smoother Flow

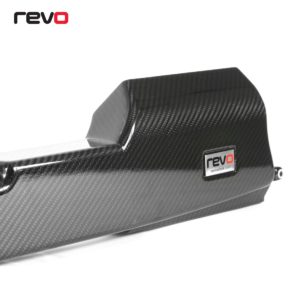

Carbon Lid

The Revo Carbon Lid has been designed to increase air box volume and promote smoother airflow. The closed air system helps eliminate heat soak whilst directing cold air through its curved design directly to the oversized outlet.

16% Larger Air Box Outlet
Improves Air Flow Efficiency
Carbon Series Quality



Carbon Air Scoop

The Revo Carbon Air Scoop directly replaces the OEM front panel and directs cold air to the utilising an internal fin. A second feed of cold air into the engine bay helps keep ambient temperatures lower.

Increased Airflow
Internal Fin & Engine Bay Vent
Carbon Series Quality





Full Kit Includes

90mm Turbo Inlet Hose
Machined Inlet
Carbon Air Box Lid
ProPanel Air Filter
Carbon Front Section

Research and Development

All Revo products are designed in-house, allowing our team of engineers to rigorously test products during the design process. Only Revo offer a kit with a 16% larger lid outlet and matching hose, ensuring maximum performance at even Stage 3 and above specification.



Graphs

To ensure this product would meet our exacting standards and performance, we carried out controlled testing on a Stage 4 Skoda Octavia VRS 2.0TSI running Shell vPower pump fuel on an in-house Dynapak hub dyno. With impressive results in comparison to the standard set up, peak results showed up to +41 WHP and +42 NM over stock with an average of +19whp and +25NM throughout the rev range.





Vehicle Applications



ManufacturerModelEngineYear

Audi
A3 (8V)
1.8 / 2.0 TFSI
12 –

Audi
S3 (8V)/td>
2.0 TFSI
12 –

Audi
TT (MK3)
2.0 TFSI
15 –

Audi
TTS (MK3)
2.0 TFSI
15 –

Seat
Leon (MK3)
1.8 / 2.0 TSI
12 –

Skoda
Octavia (MK3)
1.8 / 2.0 TFSI
12 –

Skoda
Superb
2.0 TSI
15 –

Seat
Ibiza Cupra
1.8 TSI
15 –

Volkswagen
Golf (MK7)
2.0 TSI GTI
12 –

Volkswagen
Golf (MK7)
2.0 TSI R
1 –

Volkswagen
Golf (MK7)
1.8 TSI
12 –

* Fitments for 1.8 TSI & 2.0 TSI Engines with IHI IS20 and IS38 Turbos
Part No: RV581M200400
